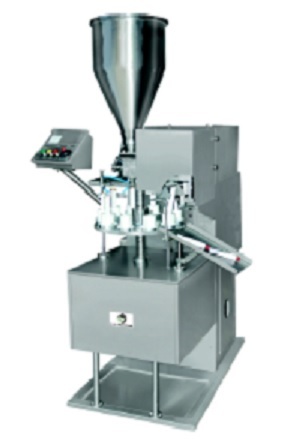

Tube Filling Machine

Tube Filling Machine
Tube Filling Machine
Product Code : NAU-1
Brand Name : N.K Industries
Product Description

We always strive hard to meet the varied needs of our patrons by manufacturing, exporting and supplying pristine quality Tube Filling Machine. This machine is widely used for filling honey, liquid chocolate, jam, shampoo, lotions into the bottles. The offered machine is manufactured using quality approved materials under the observation of our diligent experts. In addition to this, the provided Tube Filling Machine can be bought from us at market leading prices by our valued clients.

Key Points:

  • Rust resistance body
  • Superior efficiency
  • Reliable operations
  • User friendly design


Salient Feature of Machines:

  • Tube holders of Aluminum / Nylon
  • Pump unit Stainless steel for filling volume
  • Relay electrical control system with operating panel with start, stop and inch.
  • 23 Lit Container acid proof
  • No Tube no fill device
  • Blow off for connection to Local comp.
  • Motor with Variable speed.


Machine working Step by Step:

  • In operation of Tube Filling Machine , First the Lami tube is sensed by No tube no fill mechanism. In next station the pump, in the pump housing moves forward and tube is filled with desired amount of paste /ointment.
  • After filling of tube, it is indexed to the next station through sealing mechanism which consists of two subsequent stations for only folding of two fold of tube.
  • Last one being the coding station on which the folded beam of tube coded with the different letters in the holder.
  • The sealed tube is the lifted out from tube holder in the next station by Ejection rod and it is deflected by tipper to the receiving hoper kept right side of the machine.

Technical Specification:

MODEL NO. NAU-1

Speed

40 t0 45 tubes /min filling capacity

Vol

5 ml to 200 ml

Tube size dia

12 mm to 32 mm max

Tube size Length

50 L min to 200 L Max

Power consumption

2.5 KW Max

Size

1450 X 1150 X 1750 (mm)

Net Weight

285 Kg

Gross Weight

515 Kg



Optional features:

  • Paste Stirring Device with Separate Device.
  • Jacketed Container :
  • This is acid proof with Pipe connection, heater & PT 100 Thermostat & Temp Controller.
  • Device for coding
