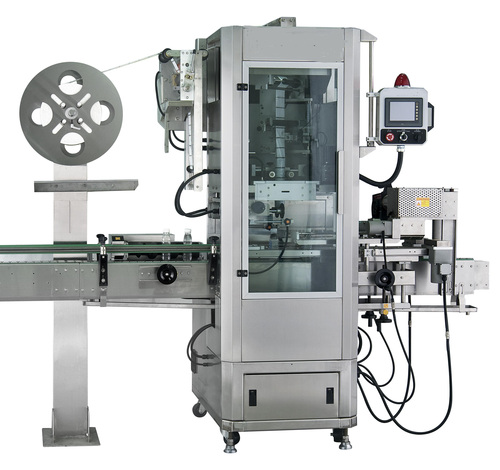

Shrink Sleeve Labeling Machine

Shrink Sleeve Labeling Machine

Product Details:

X

Product Description

We have cornered the whole market by manufacturing, exporting and supplying a quality tested array of Shrink Sleeve Labeling Machine. It is widely used in beverage, food, liquor, pharmaceutical and cosmetic industries. Our experienced and skilled team of experts manufacture this machine with the use of the best quality components and highly advanced techniques. Provided at economic prices, the provided Shrink Sleeve Labeling Machine can be bought from us.

Key Points:

  • Less maintenance
  • Impeccable performance
  • High load bearing capacity
  • longer working life



Salient Feature of Machines

  • Complete SS 304 Construction
  • Fully automatic operation.
  • No Bottle - No Sleeve-Feature (Eliminates Wastage).
  • Can handle round glass / plastic bottles.
  • Speed of 40 bottles to 60 bottles/min. depending on the cut length of the sleeve.
  • Servo motors for more accuracy.
  • Fitted with digital PLC control.
  • Height adjustments to suit height variant bottles.
  • Eye mark sensor for accurate cutting in printed sleeves.
  • VFD used to increase or decrease the speed wherever necessary.
  • Can easily be synchronized with a tunnel.
  • Very easy change over.
  • All electronics and electrical are of CE Certified.



Technical specification

Type of Labelling

Shrink Sleeving

Machine Operating Direction

Left to Right

Speed of Machine

60 to 70 BPM

Diameter of Bottle

Ø28- Ø125mm

Height of Bottle

30mm-280mm

Label Sleeve Material

PVC,PET,OPS

Sleeve roll inner diameter

102 mm

Sleeve Roll Outer Diameter

400 mm Maximum

Voltage

440V,50/60HZ,3PH

Input Power

1.5KW-2KW

Machine Dimension

2300 X 550 X 1500mm

Total Weight

1200KG
