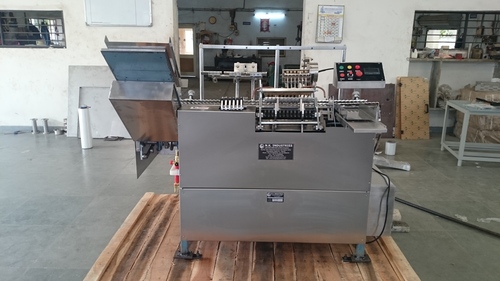

Ampoule Filling Sealing Machine
Product Details:
Product Description
We are one of the foremost enterprises in this domain, engaged in manufacturing, exporting and supplying superior quality Ampoule Filling Sealing Machine. This machine is manufactured under the strict supervision of adept professionals by utilizing fine quality components with the implication of pioneering techniques. It is suitable for processing of 4 or 8 ampoules in each machine cycle. In addition to this, the provided Ampoule Filling Sealing Machine can be bought from us at economical prices by our valued patrons.
Key Points:
- Low maintenance
- Impeccable performance
- Reliable operations
- User friendly design
Technical Specification:
|
Model |
NAFS-60 |
NAFS-120 |
NAFS-180 |
|
Name |
Four head Ampoule Filling Sealing machine |
Six Head Ampoule Filling Sealing Machine |
Eight Head Ampoule Filling Sealing Machine |
|
Output |
60 Ampoule / minute depending upon Ampoule Diameter |
120 Ampoule / minute depending upon Ampoule Diameter |
160 Ampoule / minute depending upon Ampoule Diameter |
|
Filling Accuracy |
±1 % |
±1 % |
±1 % |
|
Filling Range |
1 ml to 10 ml |
1 ml to 10 ml |
1 ml to 10 ml |
|
No of Filling Head |
4 head |
6 head |
8 Head |
|
Power requirement |
230 V ,single phase , 50 HZ |
230 V ,single phase , 50 HZ |
230 V ,single phase , 50 HZ |
|
Electrical supply |
1 HP |
1.5 HP |
2 HP |
|
Ampoule Size |
1 ml to 10 ml Ampoule |
1 ml to 10 ml Ampoule |
1 ml to 10 ml Ampoule |
|
Net Weight |
350 KG |
450 KG |
500 KG |
|
Dimension |
1250 X 1180 X 1250 |
1590 X 1180 x 1250 |
1850 X 1200 X 1300 |
